This post may help for all kind of (hover board) electric scooter fault diagnosis.

This post may help for all kind of (hover board) electric scooter fault diagnosis.
most of the faulty issues are because of some cables inside are loose or disconnect.
It usually caused from the shaking when riding or carelessness of factory.
it will be easy to fix by yourself instead of wasting too much time for replacement.
B1.thumb.jpg.c2e032ec9bf352433ec9d066042
the scooter has 3 circuit boards, one big main board and 2 co-board.
B2.thumb.jpg.d0ed2f9dda3af8e354f7c0318b7
B3.thumb.jpg.4515d5575183f664b966d6d9b35
B4.thumb.jpg.04635b02f44c01bd596dc93a6ec
B5.thumb.jpg.d856cda3df9a28bfeec78301688
B6.thumb.jpg.9a0eef886eb8e755c0d7acaed70

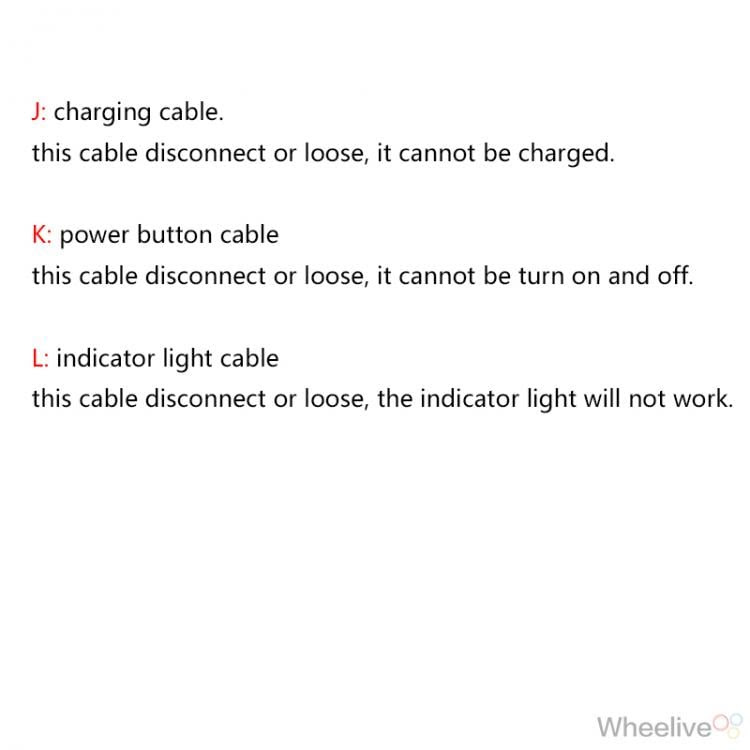

B8.thumb.jpg.bdf020f75d3c9390fe5a39f2b78
other light indication:
1 times at once: in part C
2 times at once: haven't seen
3 times at once: motor broken or short
4 times at once: in part H
5 times at once: in part B

6 times at once: battery problem. try to replace a new battery.
7 times at once: battery side co-board problem. try to replace the co-board.
8 times at once: power button side co-board problem. try to replace the co-board.

----------------------------------------------------------------------
how to reset the mini smart scooter (hover board)
resolve the imbalance or lost control issue


how to replace (change) circuit board
